HBSQ-K Explosion Proof Chain Hoist

　　The name of product: HBSQ-K explosion proof chain hoist

　　The type of product: Non-sparking tools

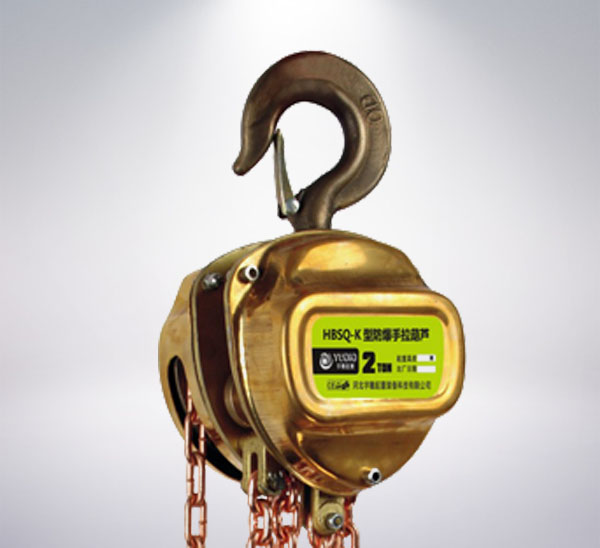

　　Product description:The HBSQ-K explosion proof hand chain hoist designed by Yudiao,which adopts a triangular design structure, and its mechanical performance is more stable. The main parts are made of bronze with forged, more durable. The company own advanced technology, and produce the chain hoist according to customer requirements .All products of Yudiao are guaranteed by People's Insurance Company of China PICC, please rest assured to buy.

　　24 hours free hotline: 86 18903121217

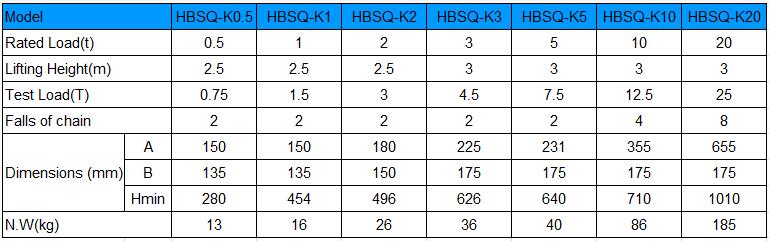

　　Specification of product:

　　1. Widely used in potential fire and explosion dangerous environments, such as oil, chemical, military, mining, power and other environment.

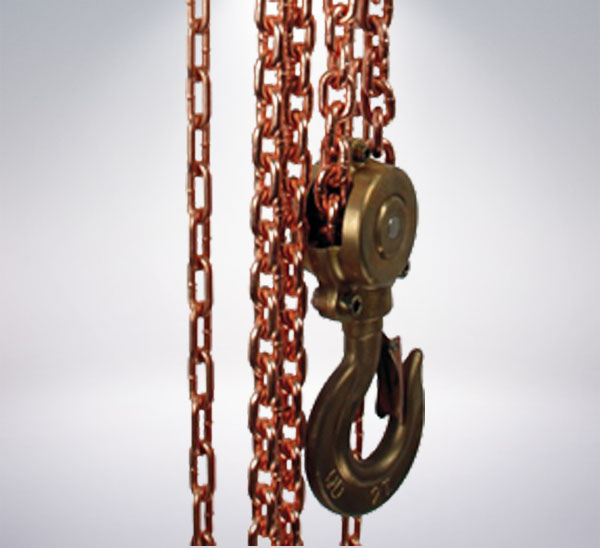

　　2. The sporcket, chain wheels, plate, hooks, gears and gear shafts of the explosion-proof hand chain are made of aluminium bronze and beryllium bronze alloy.

　　3. Friction will not produce sparks during operation,it is not easy to cause fire or explosion in flammable and explosive environment.

　　4. The shell of explosion-proof hand gourd is made of H62 copper alloy material.

　　5. The rotating gear is treated with high temperature and has high wear resistance.

　　6. With explosion-proof trolley, it can  lifting heavy objects from left and right.

　　Precautions:

　　1. Overloading is strictly prohibited. Other power operations other than manpower are strictly prohibited. Before use, make sure the parts are in good condition, the transmission part and the lifting chain are well lubricated, and the idling situation is normal. Check whether the upper and lower hooks are securely fastened before lifting. Prohibit heavy objects hanging at the tip and other wrong operations.Electric hoist lifting unloading side not heavy, prohibited use of overload.

　　2. The explosion-proof hoist chain shall be hung vertically and shall not be twisted or twisted, and the lower hook of the double chain shall not be turned over. The operator shall stand in the same plane as the hand wheel, then pull the chain, so that the hand wheel rotates in clockwise direction, so the heavy object can be lifted. When lifting heavy objects, people are prohibited from doing any work or walking under heavy loads to avoid personal accidents.In daily work, the spacing device shall not be used artificially to stop heavy lifting or stop the equipment running.

　　3.In the lifting process, no matter lifting or down, when pulling the wheel, the force should be uniform and gentle.Don't force too hard, so as to avoid the hand chain beating or clamping ring. If the operator feels that the pulling force is greater than normal , the operator should stop using it immediately.

　　Our company can also produce a variety of non-standard products with samples and design drawings of customers, to meet the different needs of customers. We adhere to the principle that science and technology are the primary productive forces and strictly follow the quality standards, from the purchase of raw materials to the entire process of transport of goods are strictly controlled. Our goal is to achieve the product qualification rate of 100%, ensure high quality of products.
