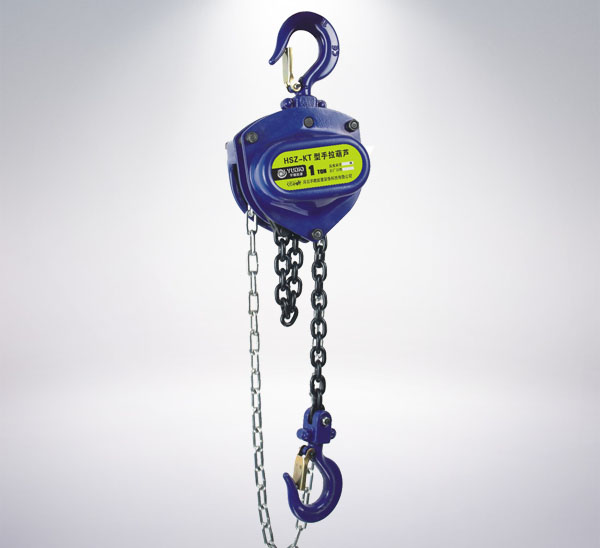

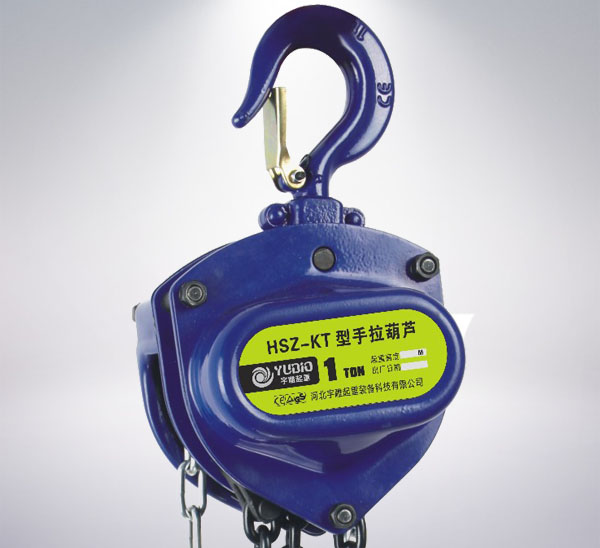

Product Name: HSZ-KT -type chain hoist
Product Category: Hand chain hoist
Product Description : HSZ-KT-type chain hoist is one of the products that Hebei Yudiao Hoisting is expert in manufacturing which is easy to carry with a small sprocket. About the price,please do not hesitate to ask our customer service staff.
Advantages of HSZ-KT-type chain hoist Product:
1.It has a compact structure and light weight.
2.It is designed with the smallest sprocket.
3.The testing load is 1.5 times of the the rated load.
4.The testing is carried out by rotation and the hoist can run 1000 times.
| Model | HSZ-KT1T | HSZ-KT1(1/2)T | HSZ-KT2T | HSZ-KT3T | HSZ-KT5T | HSZ-KT10T | HSZ-KT20T | |
| SKU | CHSZKT2200L10 | CHSZKT3300L10 | CHSZKT4400L10 | CHSZKT6600L10 | CHSZKT11000L10 | CHSZKT22000L10 | CHSZKT44000L10 | |
| Loading Capacity | ton | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| lb | 2200 | 3300 | 4400 | 6600 | 11000 | 22000 | 44000 | |
| Standard Lifting Hight | M | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| ft | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Testing Load | ton | 1.50 | 2.25 | 3.00 | 4.50 | 7.50 | 15.00 | 30.00 |
| lb | 3300 | 4950 | 6600 | 9900 | 16500 | 33000 | 66000 | |
| Min.disiance between two hooks | mm | 317 | 399 | 414 | 465 | 636 | 798 | 890 |
| in | 12 | 16 | 16 | 18 | 25 | 31 | 35 | |
| Max. Full Load Pulling Force | N | 284 | 308 | 343 | 343 | 372 | 382 | 382 |
| lbf | 64 | 69 | 77 | 77 | 84 | 86 | 86 | |
| Diameter of loading chain | mm | 6 | 7.1 | 8 | 7.1 | 9 | 9 | 9 |
| in | 0.24 | 0.28 | 0.31 | 0.28 | 0.35 | 0.35 | 0.35 | |
| No.of loading chain | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Extra weight for add one meter | kg | 1.55 | 1.83 | 3.53 | 2.86 | 4.3 | 7.8 | 15.6 |
| lb | 3 | 4 | 8 | 6 | 9 | 17 | 34 | |
Product Description :
(1)Chain hoist is a kind of manual lifting equipment that is simple to use, easy to carry. It plays a extremely important role outdoors or where there is no power.
(2)It is safe, reliable and easy to maintain, and it has high mechanical efficiency and small bracelet tension.
(3) It has light weight,beautiful appearance, small size, and it is durable.
【Precautions】
(1) Make sure all parts are intact before using, and do not throw the hoist.
(2) The lifting weight shall not exceed the rated weight, and there should be no more than one hoist being used at the same time.
(3) It can not be pulled horizontally, too high or too low. Do not use the hoist when the chain is bent or kinked.
(4)People standing below the hoist when lifting heavy objects is forbidden. And do not drag hard when the chain can not be moved.
We can also provide our customers with products according to the samples and design drawings sent to us to meet their different needs. We adhere to the principle of science and technology is the primary productive force and strictly follow out the quality standards the entire process from the procurement of raw materials to the transport of goods. 100% passing rate is our goal in order to ensure high quality goods.
