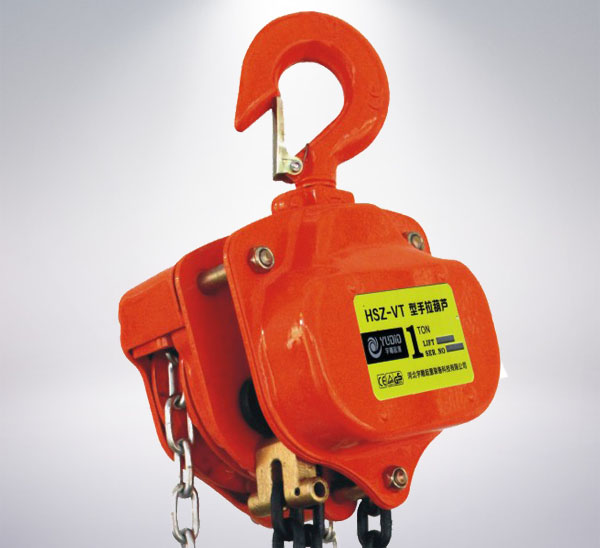

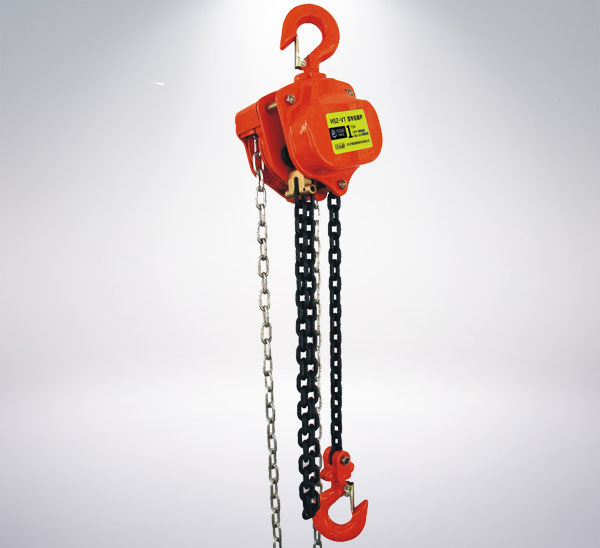

Product Name: HSH-V -type chain hoist
Product Category: Hand chain hoist
Product Description : Factory direct sale HSh-V-type chain hoist with competitive price and high quality. HSH-V-type chain hoist is widely used outdoors where there is no power for the installation of machine,lifting goods,loading and unloading in industry, agriculture, construction.
1. Automatic double pawls brake system make it safe and reliable.
2.It is strengthened by the heat treated wall boards, gears and major and minor axes.

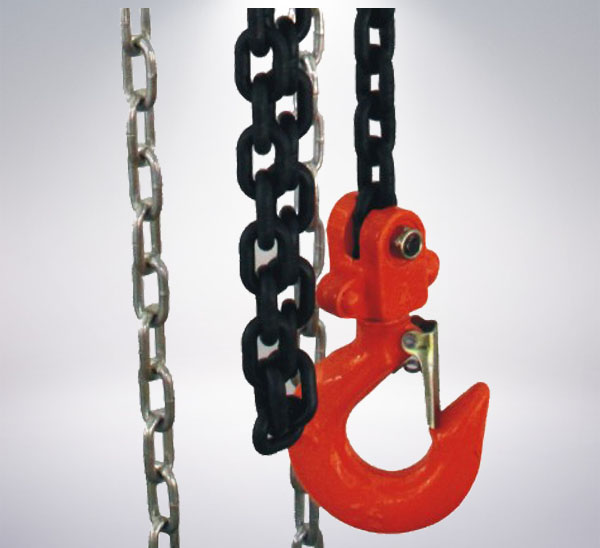

3.With G80 alloy steel lifting chain and galvanized hand chain;
4.With reasonable designed structure
| Model | HSH-V0.75T | HSH-V1.5T | HSH-V3T | HSH-V6T | |||||
| SKU | LHSHV1650L05 | LHSHV1650L10 | LHSHV3300L05 | LHSHV3300L10 | LHSHV6600L05 | LHSHV6600L10 | LHSHV13200L05 | LHSHV13200L10 | |
| Loading Capacity | ton | 0.75 | 1.5 | 3 | 6 | ||||
| lb | 1650 | 3300 | 6600 | 13200 | |||||
| Standard Lifting Hight | M | 1.5 | 3 | 1.5 | 3 | 1.5 | 3 | 1.5 | 3 |
| ft | 5 | 10 | 5 | 10 | 5 | 10 | 5 | 10 | |
| Testing Load | ton | 1.13 | 2.25 | 4.50 | 9.00 | ||||
| lb | 2475 | 4950 | 9900 | 19800 | |||||
| Min.disiance between two hooks | mm | 440 | 550 | 650 | 650 | ||||
| in | 17 | 22 | 26 | 26 | |||||
| Max. Full Load Pulling Force | N | 250 | 310 | 410 | 420 | ||||
| lbf | 56 | 70 | 92 | 94 | |||||
| Diameter of loading chain | mm | 6.3 | 7.1 | 9 | 10 | ||||
| in | 0.25 | 0.28 | 0.35 | 0.39 | |||||
| No.of loading chain | 1 | 1 | 2 | 3 | |||||
| Handle Length (in) | mm | 285 | 410 | 410 | 410 | ||||
| in | 11 | 16 | 16 | 16 | |||||
Product Description
(1)Chain hoist is a kind of manual lifting equipment that is simple to use, easy to carry. It plays a extremely important role outdoors or where there is no power.
(2)It is safe, reliable and easy to maintain, and it has high mechanical efficiency and small bracelet tension.
(3) It has light weight,beautiful appearance, small size, and it is durable.
【Precautions】
(1) Make sure all parts are intact before using, and do not throw the hoist.
(2) The lifting weight shall not exceed the rated weight, and there should be no more than one hoist being used at the same time.
(3) It can not be pulled horizontally, too high or too low. Do not use the hoist when the chain is bent or kinked.
(4)People standing below the hoist when lifting heavy objects is forbidden. And do not drag hard when the chain can not be moved.
We can also provide our customers with products according to the samples and design drawings sent to us to meet their different needs. We adhere to the principle of science and technology is the primary productive force and strictly follow out the quality standards the entire process from the procurement of raw materials to the transport of goods. 100% passing rate is our goal in order to ensure high quality goods.
