The name of product:HSZ-KⅡChain Hoist
The type of product:chain Hoist

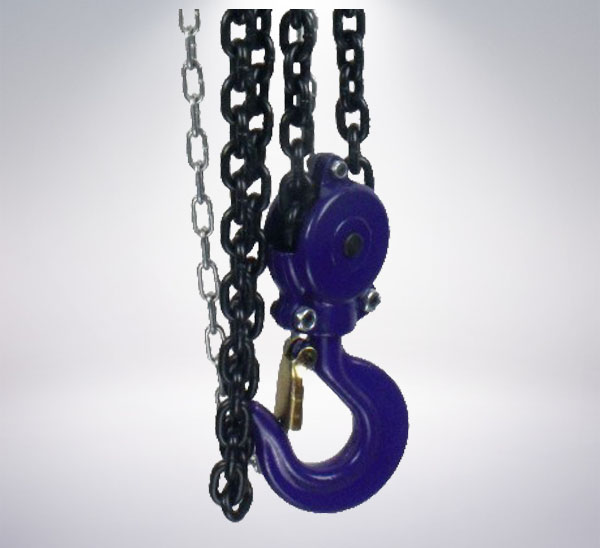

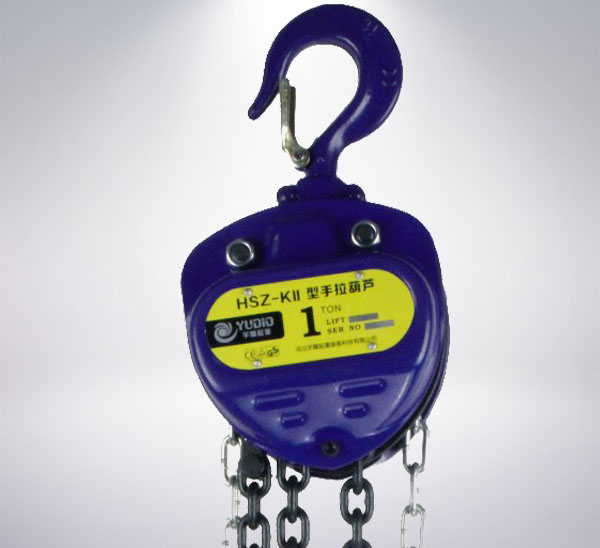

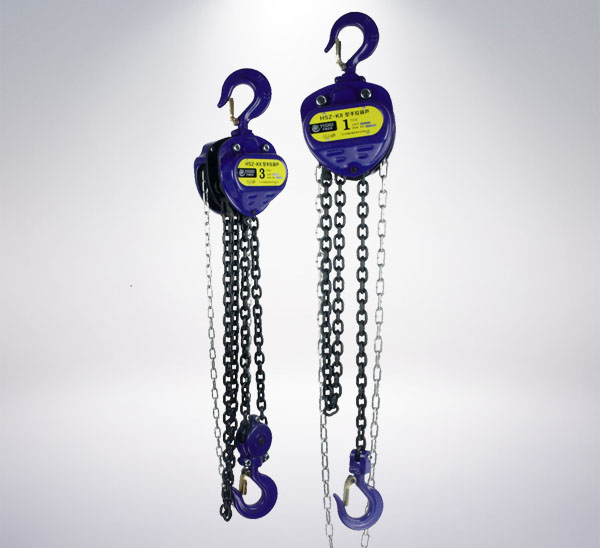

Product description:HSZ-KII Chain Hoist is a kind of chain Hoists with a high cost-effective of manufacturer Yudiao. Double pawl double guide wheel design, lighter hand weight, more secure win new and old customers highly recognized.
The specification of product:
1. Rapid adjust the position of bottom hook
2. Double pawls braking system
3. Double guide roller, goods lifting more smooth,not easy to hold chains
4. The hooks with stamped and heat treatment hooks has high strength and wear resistance
5. G80 Alloy steel load chain and galvanized hand chain as standard configuration.
| Model | HSZ-KII 1/2T | HSZ-KII1T | HSZ-KII1(1/2)T | HSZ-KII2T | HSZ-KII3T | HSZ-KII5T | HSZ-KII10T | HSZ-KII20T | |
| SKU | CHSZKII1100L10 | CHSZKII2200L10 | CHSZKII3300L10 | CHSZKII4400L10 | CHSZKII6600L10 | CHSZKII11000L10 | CHSZKII22000L10 | CHSZKII44000L10 | |
| Loading Capacity | ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| lb | 1100 | 2200 | 3300 | 4400 | 6600 | 11000 | 22000 | 44000 | |
| Standard Lifting Hight | M | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| ft | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Testing Load | ton | 0.75 | 1.50 | 2.25 | 3.00 | 4.50 | 7.50 | 15.00 | 30.00 |
| lb | 1650 | 3300 | 4950 | 6600 | 9900 | 16500 | 33000 | 66000 | |
| Min.disiance between two hooks | mm | 270 | 314 | 399 | 414 | 465 | 636 | 798 | 890 |
| in | 11 | 12 | 16 | 16 | 18 | 25 | 31 | 35 | |
| Max. Full Load Pulling Force | N | 231 | 309 | 320 | 360 | 340 | 414 | 414 | 828 |
| lbf | 52 | 69 | 72 | 81 | 76 | 93 | 93 | 186 | |
| Diameter of loading chain | mm | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 |
| in | 0.24 | 0.24 | 0.31 | 0.31 | 0.31 | 0.39 | 0.39 | 0.39 | |
| No.of loading chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | |
| Extra weight for add one meter | kg | 1.55 | 1.55 | 2.17 | 2.17 | 3.53 | 5.1 | 10.2 | 18.8 |
| lb | 3 | 3 | 5 | 5 | 8 | 11 | 22 | 41 | |
Product introduction:
(1)Chain Hoist is a kind of simple to use,easy to carry the manual hoisting machinery,Especially for the open and no power and has its important role.
(2)The use of safe and reliable,covenient maintenance, high mechanical efficiency,hand catenary pull small.
(3)The lighter weight,easy to carry,beautiful appearance, small size,durable.
Precautions
(1) Make sure all parts are intact before using, not throws products.
(2) Shall not exceed the stipulated weight,lifting weight canot more than one use at the same time.
(3) Do not cross, and may not be too high or too low, the chain cannot be used when bending or kink.
(4) When lifting heavy objects,it is forbidden to under stand, found the chain still not yank when
