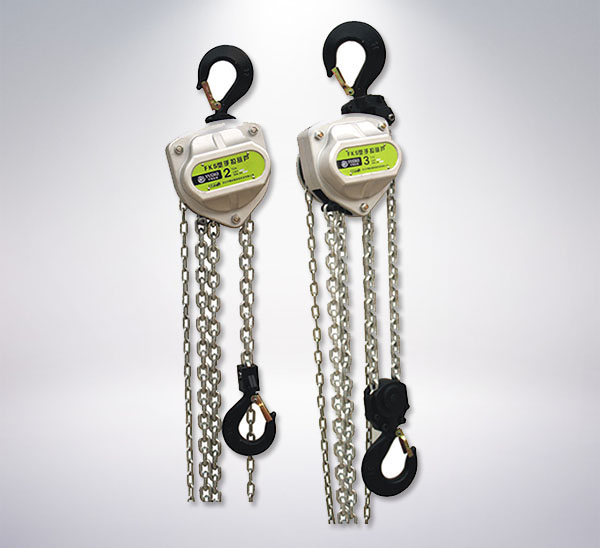

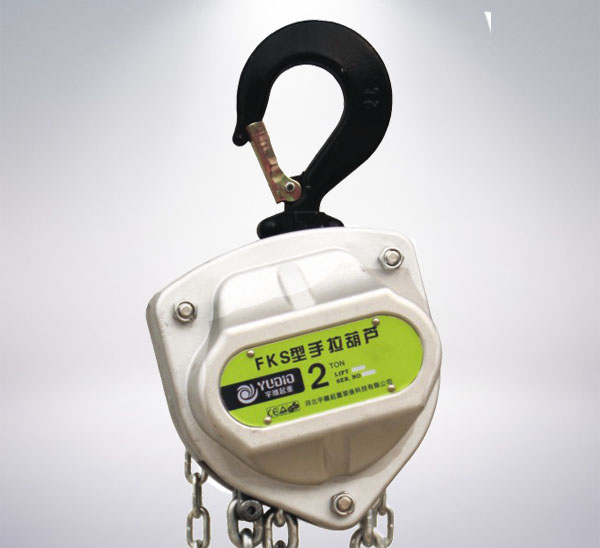

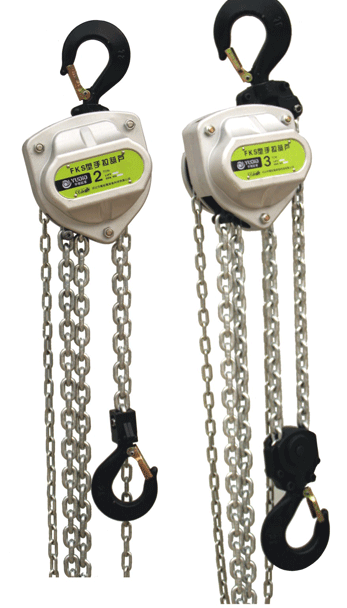

High Quality Aluminium Alloy 1-5 ton Chain Hoist

　　The name of product:yudiao FKS Chain Hoist

　　The type of product:chain Hoist

　　Product description:HSZ-KII Chain Hoist is a kind of chain Hoists with a high cost-effective of manufacturer Yudiao. Double pawl double guide wheel design, lighter hand weight, more secure win new and old customers highly recognized.

　　The specification of product:

　　1. Rapid adjust the position of bottom hook

　　2. Double pawls braking system

　　3. Double guide roller, goods lifting more smooth,not easy to hold chains

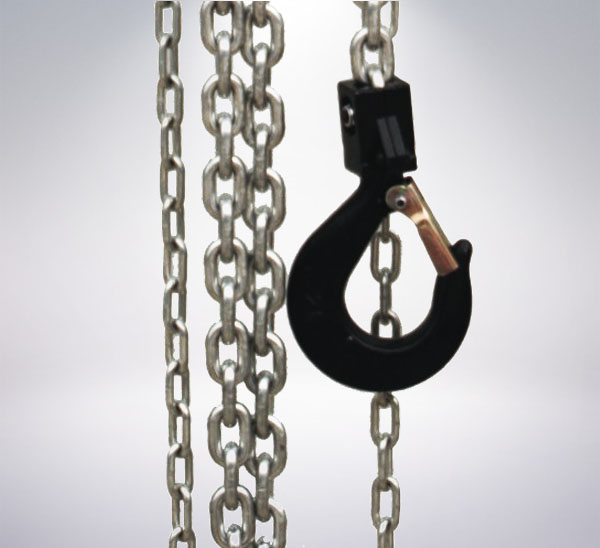

　　4. The hooks with stamped and heat treatment hooks has high strength and wear resistance

　　5. G80 Alloy steel load chain and galvanized hand chain as standard configuration.　

Model		FKS1T	FKS2T	FKS3T	FKS5T
SKU		AACH2200L08	AACH4400L08	AACH6600L10	AACH11000L10
Loading Capacity	ton	1	2	3	5
	lb	2200	4400	6600	11000
Standard Lifting Hight	M	2.5	2.5	3	3
	ft	8	8	10	10
Testing Load	ton	1.50	3.00	4.50	7.50
	lb	3300	6600	9900	16500
Min.disiance between two hooks	mm	385	485	585	665
	in	15	19	23	26
Max. Full Load Pulling Force	N	270	334	261	321
	lbf	61	75	59	72
Diameter of loading chain	mm	6	8	8	10
	in	0.24	0.31	0.31	0.39
No.of loading chain		1	1	2	2
Extra weight for add one meter	kg	1.55	2.16	3.52	8.3
	lb	3.4	4.8	7.8	18.3



　　Product introduction:



　　(1)Chain Hoist is a kind of simple to use,easy to carry the manual hoisting machinery,Especially for the open and no power and has its important role.

　　(2)The use of safe and reliable,covenient maintenance, high mechanical efficiency,hand catenary pull small.

　　(3)The lighter weight,easy to carry,beautiful appearance, small size,durable.

　　Precautions

　　(1) Make sure all parts are intact before using, not throws products.

　　(2) Shall not exceed the stipulated weight,lifting weight canot more than one use at the same time.

　　(3) Do not cross, and may not be too high or too low, the chain cannot be used when bending or kink.

　　(4) When lifting heavy objects,it is forbidden to under stand, found the chain still not yank when

　　Our company can also produce a variety of non-standard products with samples and design drawings of customers, to meet the different needs of customers. We adhere to the principle that science and technology are the primary productive forces and strictly follow the quality standards, from the purchase of raw materials to the entire process of transport of goods are strictly controlled. Our goal is to achieve the product qualification rate of 100%, ensure high quality of products.
