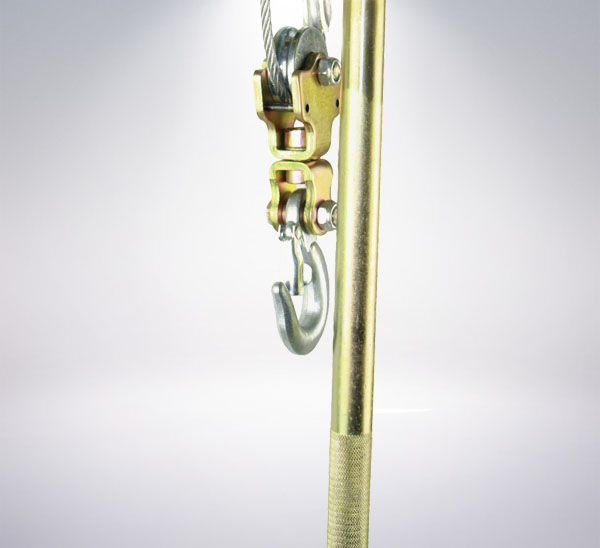

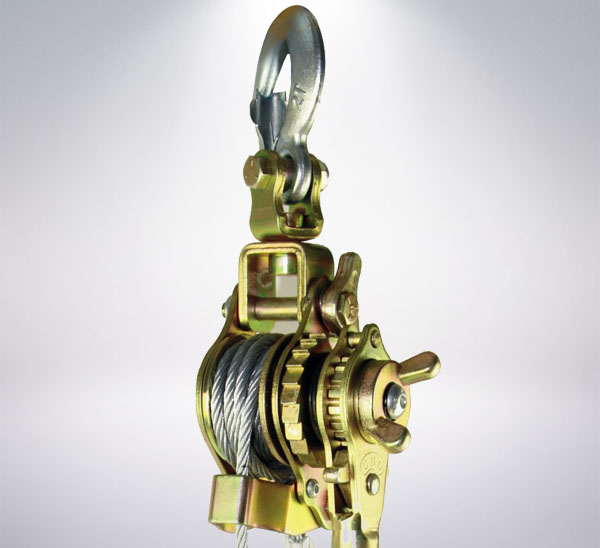

Multi Functional Cable Puller Winch

　　Product Name: Multi functional steel wire rope manual ratchet puller/cable puller winch

　　Product Category: lever hoist

　　Product Description:Multi functional steel wire rope ratchet puller is one of the products that Hebei Yudiao Hoisting is expert in which the capacity can be 1T, 1.5T ,2T, 3T and so on.It can used combined with cable wire grip to tighten wire in electricity like steel stranded wire and aluminum stranded wire.

　　24 hours hotline: +86 189-0312-1217

　　Advantages of Multi functional cable puller winch :

　　1.Material : carbon steel with heat treatment which is reliable and durable.

　　2.Small volume : light weight and portable, it can work at narrow space.

　　3.Breaking force : 3.5 times working force.

　　4.With high quality galvanized steel wire rope and aluminum alloy pressure head, it is wear resistant and rugged.

　　Technical Parameters:

　　【product description】

　　(1) Lever hoist is a multi-functional manual lifting machine with high efficient. It has unique advantages especially in narrow workplace, aloft and field work when it can be pulled from different angles.

　　(2) It is safe and reliable, durable, small size, light weight, easy to carry.

　　(3)It has high efficiency, fast speed, reasonable structure, beautiful appearance while little hand pull force is needed.

　　【Precautions】

　　(1)It is prohibited to overload objects, lengthen the handle or to operate the handle with foot.

　　(2)Make sure that the upper and lower hooks are fixed before using, and make the load in the middle of the hook chamber.

　　(3) Avoid pulling any heavy objects on the sharp angle of the hook. The lever hoist should be in parallel with the bound objects when used to fasten articles.

　　(4) It is not allowed to use when the chain is reversed, and the hooks should be replaced when the shaft axial tilt angle is greater than 10 degrees.
