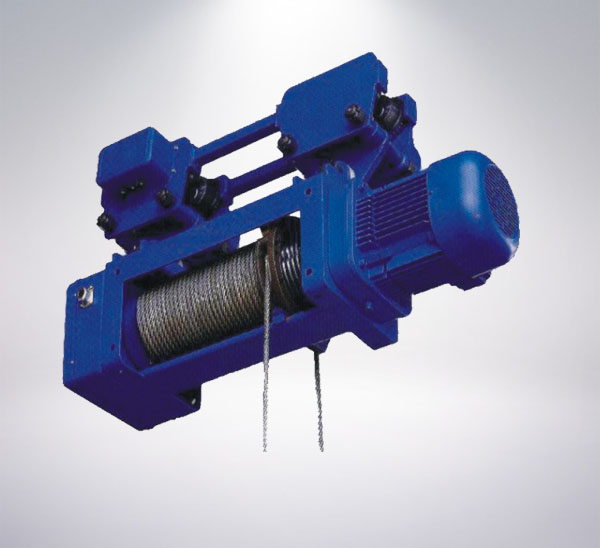

HC Type Large Tonnage Wire Rope Electric Hoist

　　Product Name:HC Type Large Tonnage Wire Rope Electric Hoist

　　Product Category: Wire Rope Electric Hoist

　　Product Description : HC Type Large Tonnage Wire Rope Electric Hoist produced by Hebei Yudiao Hoisting has a full range of sizes. Its lifting weight is 16T to 100T. It has the features of impact structure,light weight, small volume, versatile parts and easy to be operated. It can be applied in various working conditions such as in factory, mine, railway, port, warehouse and service industry.

　　24 hours hotline: +86 189-0312-1217

　　Features of HC Type Large Tonnage Wire Rope Electric Hoist

　　1. Application : It is designed according to GB3811 and JB/T9008.1-9008.6 (China national standards ). Rated load ranges from 16T to 100T, lifting height from 9M to 96M, working level M3 to M6, power frequency : 120-130 times/per hour starting braking state work.

　　2. Working condition:

　　A.Below altitude 1000M, temperature : -25℃-+45℃, humidity no more than 85%(+25℃), and no corrosive gas, no lifting things of high temperature, toxic,flammable and explosive.

　　B. Rated voltage ： 380V, rated power : 50Hz

　　C.Lifting height : 9M-96M

　　D.Rated load ： 16-100T

　　3.Advantages :

　　A.Square reducer : easy to install and transport.

　　B.Wide range of application : through the transformation of matrix

　　C.Double upper limit device.

　　D.Protection function of overload, overcurrent, decompression, loss of phase.

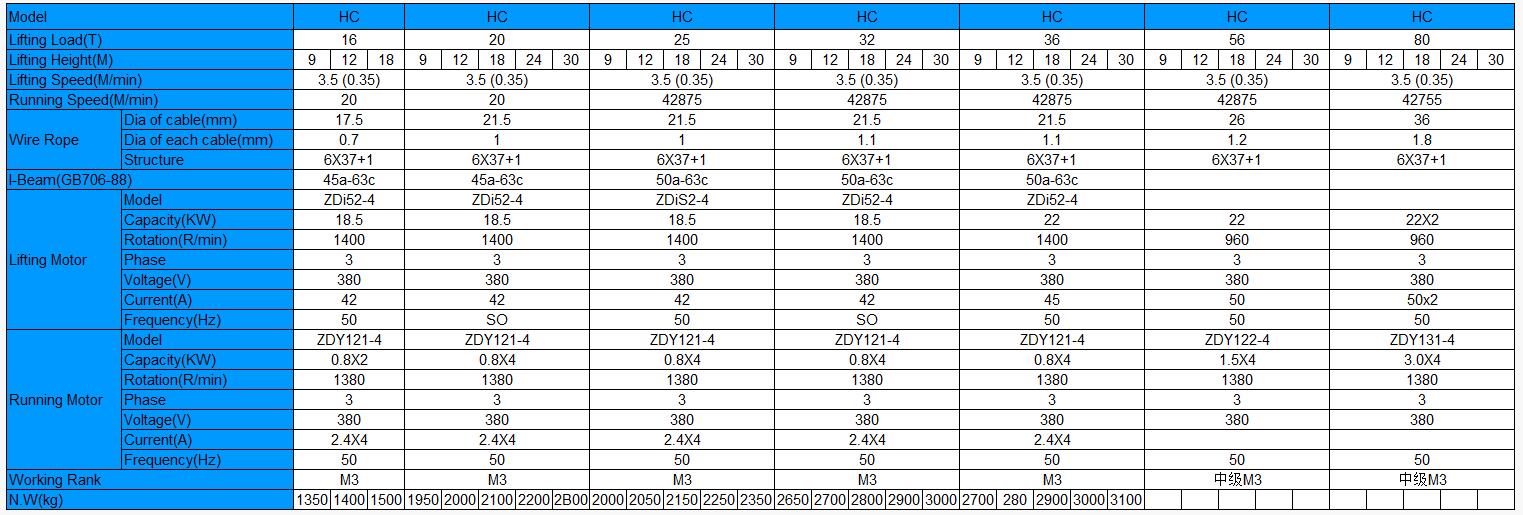

　　Technical Parameters:

　　Precautions:

　　(1)Inspection is needed before work.

　　(2)Lifting objects by side and overloading is not allowed.

　　(3)The operator should check regularly to make sure that the wire rope is not curved, kinked, dropping off or worn out and the guide rope and limit switch is reliable, and problem should be solved immediately.

　　(4)During the operation,it is not allowed to use the limit device to stop lifting.

　　(5)Turn off the switch and cut off the power when the work is finished.

　　(6)There should be a person in charge of the maintenance of the electric hoist, and inspecting the function and security status of the hoist once a week. If there is anything wrong, it should be remedied in time.

　　We can also provide our customers with products according to the samples and design drawings sent to us to meet their different needs. We adhere to the principle of science and technology is the primary productive force and strictly follow out the quality standards the entire process from the procurement of raw materials to the transport of goods. 100% passing rate is our goal in order to ensure high quality goods
